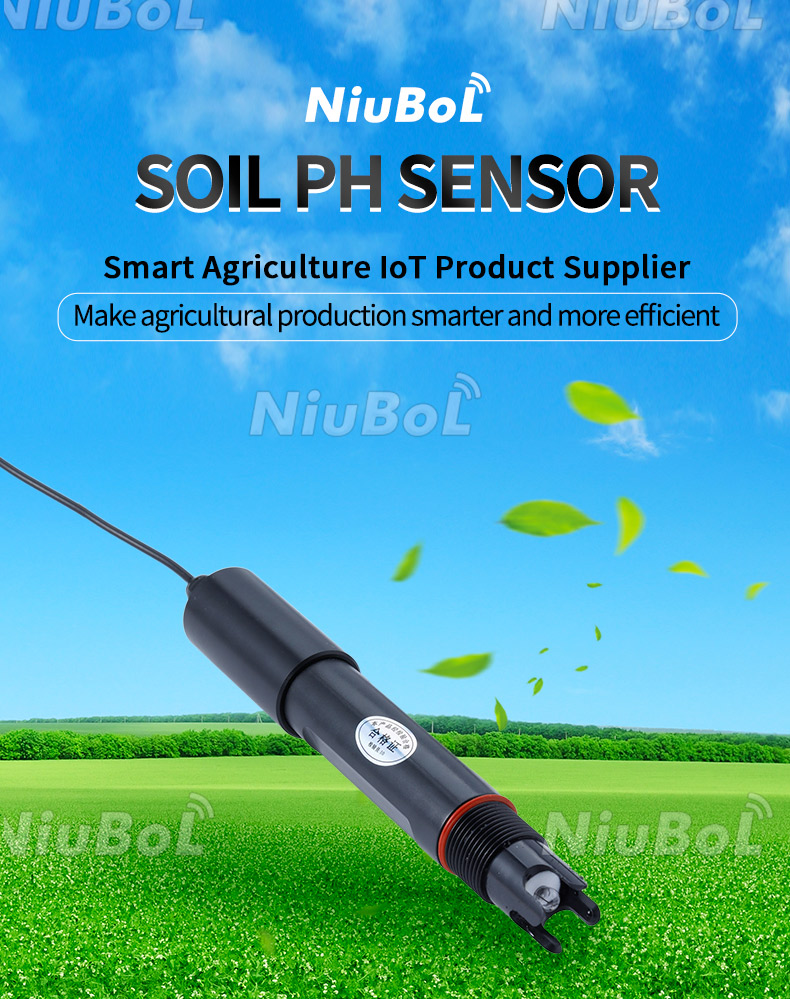

NBL-S-PH Soil pH Sensor for Precision Agriculture

Description

NBL-S-PH Soil pH Sensor for Precision Agriculture

NBL-S-PH is a compact soil pH monitoring sensor made for modern farming and environmental field work. It helps growers track acidity and alkalinity levels so fertilizer and irrigation decisions can be made with better accuracy.

Why This Sensor Matters

• Fast pH response for field-ready soil checks.
• Stable readings for routine farm monitoring and long-term deployment.

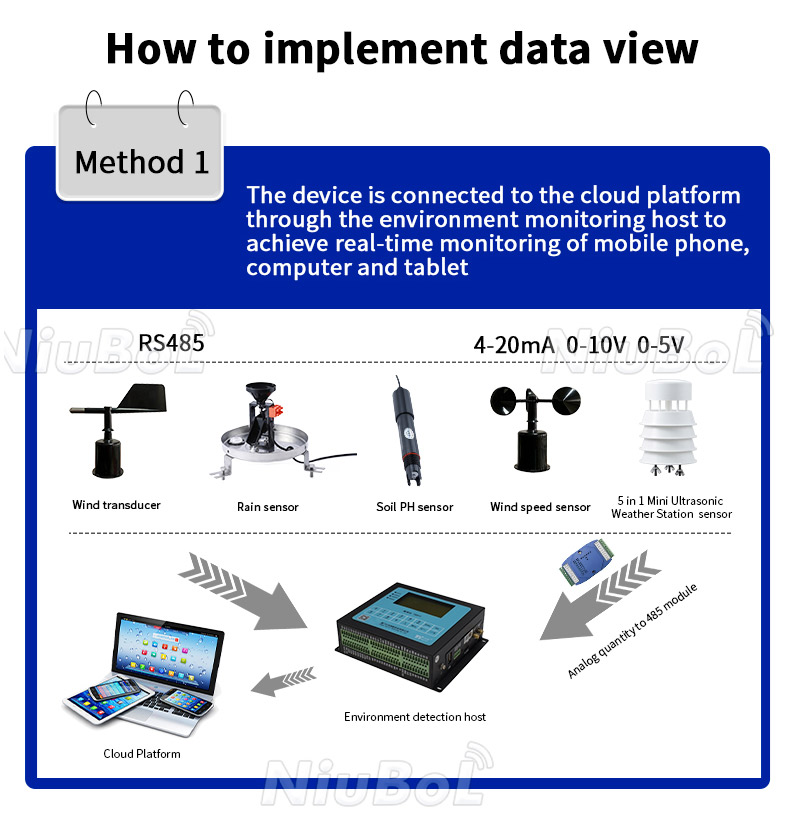

• Supports integration into controllers, data loggers, and IoT gateways.
• Useful in crop farming, nurseries, horticulture, and soil restoration projects.

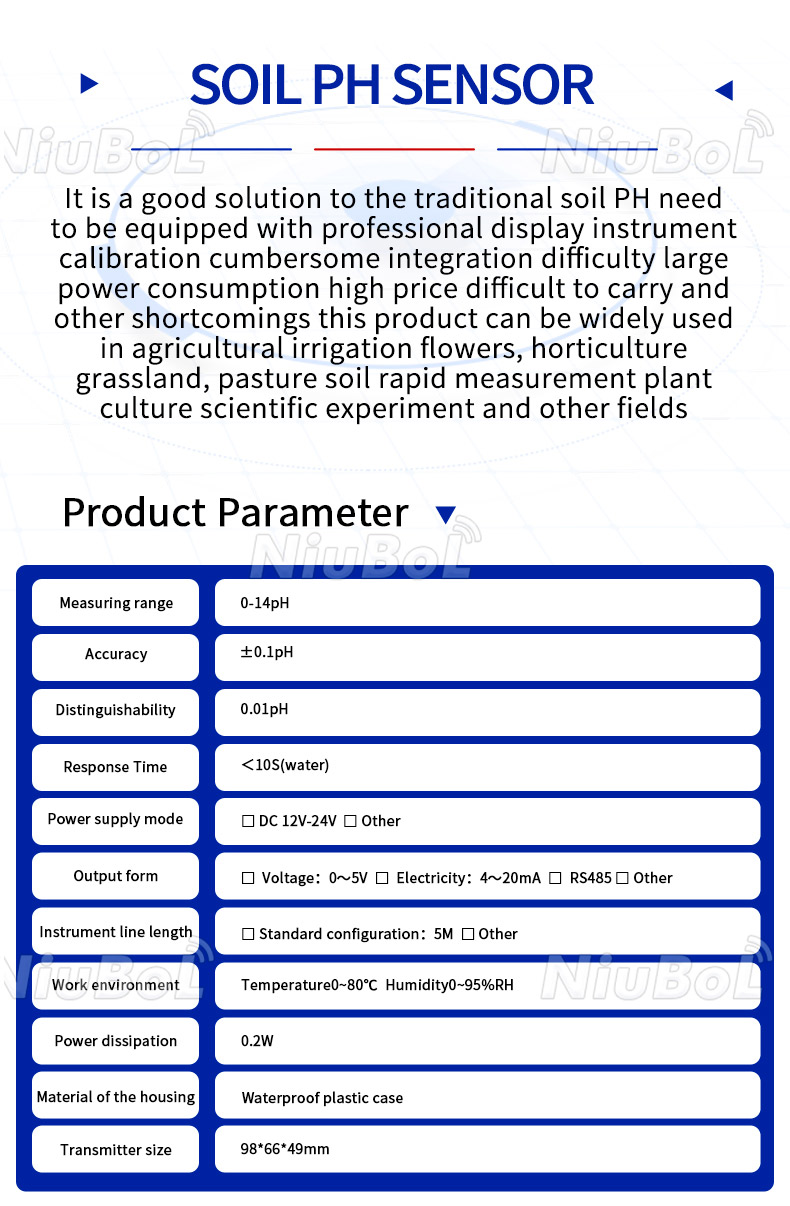

Technical Specifications

Model	NBL-S-PH
Measuring Range	0 to 14 pH
Accuracy	+/-0.1 pH
Resolution	0.01 pH
Response Time	Less than 10 seconds (in water)
Power Supply	DC 12V to 24V
Output	RS485 / 4-20mA / 0-5V
Cable Length	Standard 5 meters
Working Environment	0C to 80C, 0 to 95% RH
Power Consumption	Approx. 0.2W
Housing	Waterproof plastic enclosure

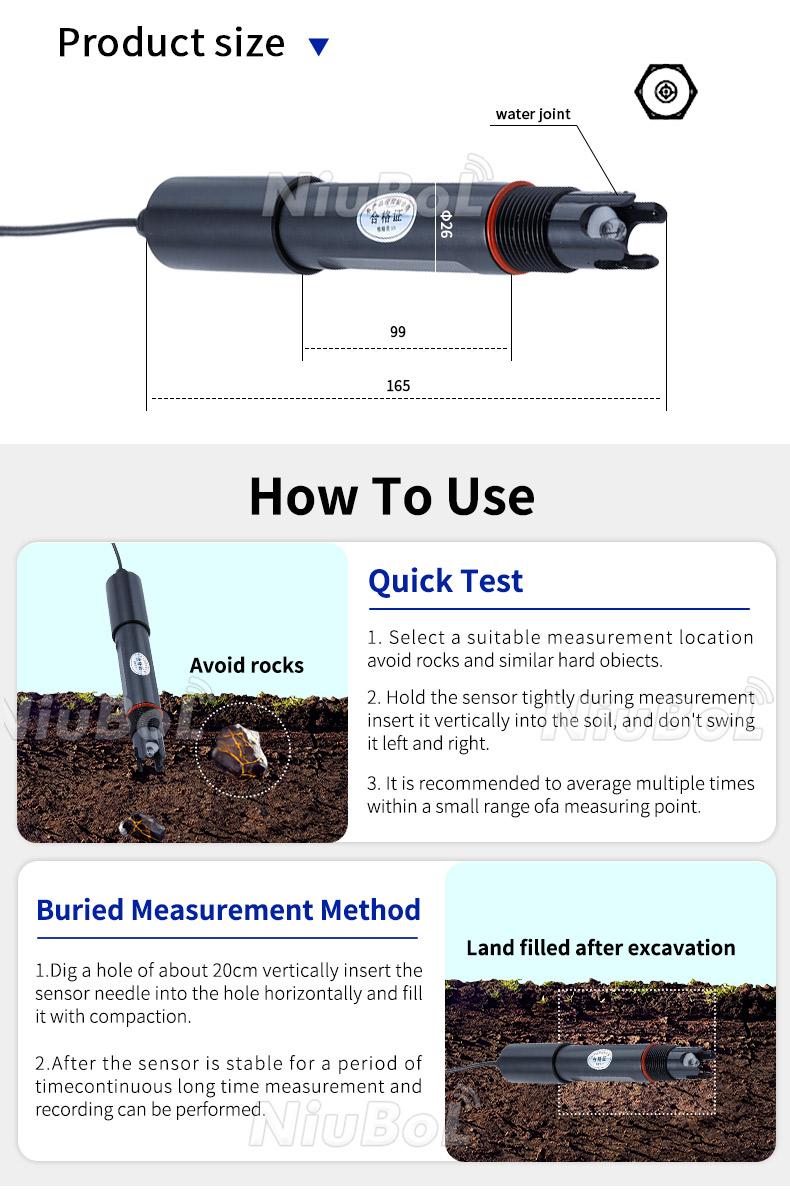

Transmitter Size	98 x 66 x 49 mm

Recommended Use Cases

• Precision fertigation and irrigation management
• Greenhouse and nursery soil conditioning
• Pasture and horticulture pH balancing
• Soil science and agri-field research

Note: Interface type and wiring setup can be customized based on your monitoring system architecture.

Technical Resources

Product manual and catalogs for integration, deployment, and procurement planning.

• NBL-S-PH Instruction Manual
• Agriculture Sensors and Weather Stations Catalog
• Agriculture Sensors Catalog

Premium Specification Comparison

Parameter	NBL-S-PH Soil pH Sensor	7-in-1 Soil Sensor
Primary Focus	Soil pH monitoring	Multi-parameter soil analytics
Main Parameters	pH	Moisture, Temperature, EC, pH, N, P, K
Range	0 to 14 pH	Broader soil condition and nutrient indicators
Output	RS485 / 4-20mA / 0-5V	USB Type-C / RS485 (model dependent)
Best For	pH-based nutrient planning and soil correction	Comprehensive precision farming decisions
Compare Product	NBL-S-PH Sensor	7-in-1 Soil Sensor
